1.Design standard: BS5155,API609, EN593
2.Test standard: DIN3230 Part3, API598, EN12266-1
3.Face to face standard: DIN3202K1, API609, EN558-1, ISO5752.
4.Medium: water, sewage, oil, food, gas and so on.
5.Flange connection: DIN2501 PN10/16, BS4504 PN10/16, ASME B16.1 125LB & 150LB,JISB2220 10K and so on.
6.Working pressure: 10 bar/16 bar.
7.Test pressure:
Shell: 15bar/24 bar
Seal: 11bar/17.6 bar
1. Small and light , and easy installation and mintanance. It can be mounted wherever needed.
2. Compact structure, 90 degree fast switch.
3. Miniminzed operating torque, energy saving.
4. Flow curve tending to straight line. Excellent regulation performance.
5. Long service life Standing the test of tens of thousands opening/closing operations.
6. Bubbles-tight sealing with no leakage under the pressure test.
7. Wide selection of materials, applicable forvarious medium.
| item | |
| Size | DN50-1400 |
| RATING | PN10/PN16 |
| BODY | DI |
| DISC | 1.4529/DI/CF8/CF8M/2507/1.4469/CF3M |
| SEAL | EPDM/NBR/PTFE |
| SHAFT | 2CR13/CF8/CF8M/1.4462 |

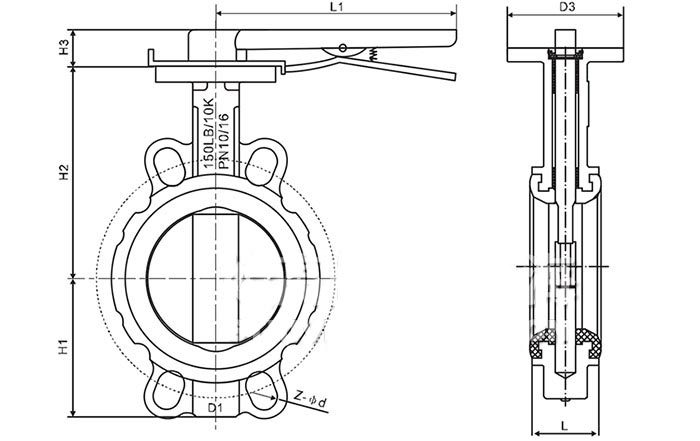

| item | Handle wafer butterfly valve |
| Standard or Nonstandard | ANSI/BS/DIN/JIS/ISO |
| Disc | DI/WCB/CF8/CF8M |
| Pressure | PN6,PN10,PN16,125PSI,150PSI |
| Seat | EPDM/NBR/PTFE |
| Handle: | Lever Handle |
| delivery time | 1.in stock:immediately 2.sample:2days 3.OEM/ODM:3-15 Days |
| Stem | SS316/304/420 |
| Working pressure | 1.0-1.6Mpa (10-25bar) |
