Norminal diameter:DN20-DN2000MM
Pressure rating:PN10/16/25/40
Working temperature:0℃~+420℃
Connection: flange,tube

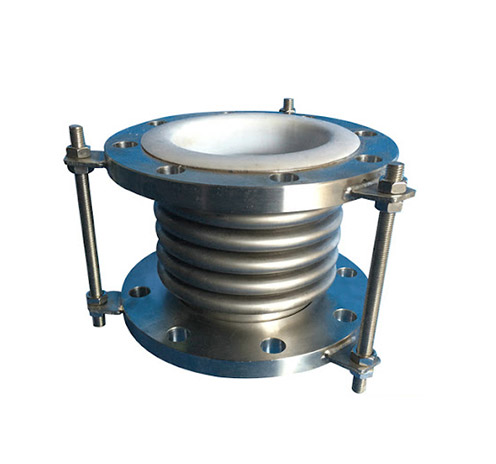

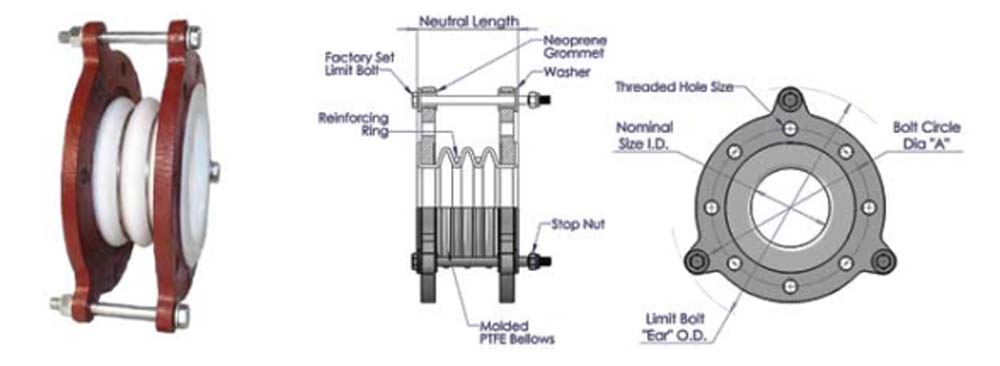

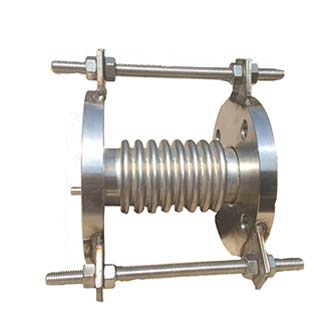

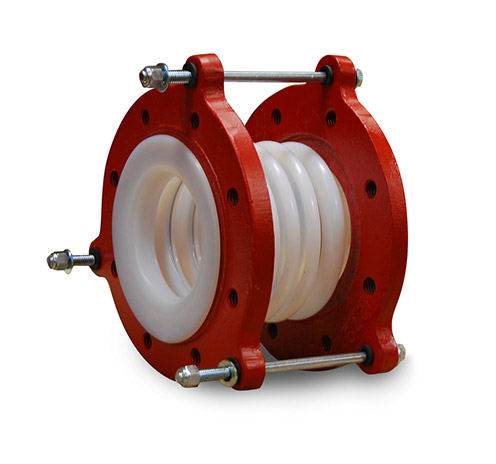

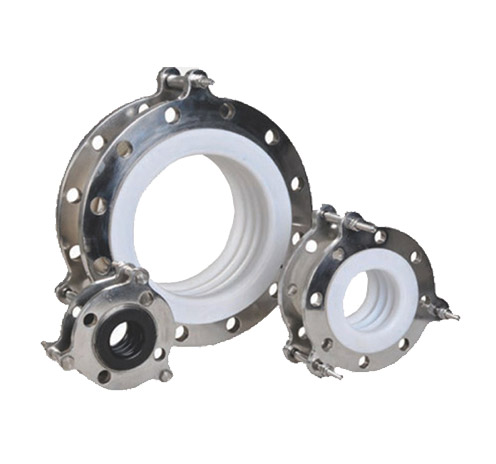

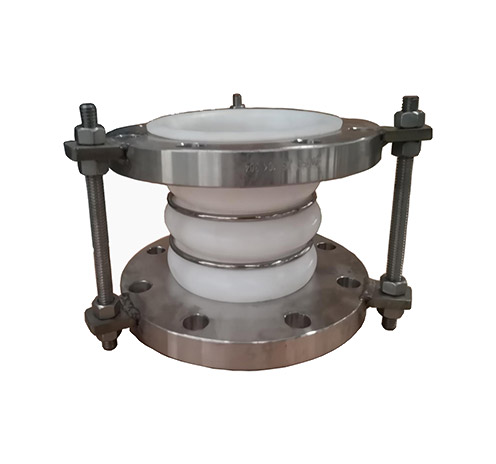

Industrial PTFE expansion joints are manufactured of unreinforced molded PTFE bellows and are standard with ANSI 150# ductile iron drilled flanges with stainless steel reinforcing rings and limit bolts (pre-set from factory). These expansion joints are available in 2, 3, or 5 convolutions with various allowable movements as noted below (also often referred to as couplings for 2-convolutions, expansion joints for 3-convolutions, and bellows for 5-convolutions, respectively).
| DN | Quantity of ripple | Pressure grade(Mpa) | Available area of corugated tube | Maximum extemal diameter(mm) | Length | ||||
| 0.6 | 1 | 1.6 | 2.5 | ||||||
| Axial compensation length mm/ toungness N/mm | Flange JZ/F | Connection JZ/J | |||||||
| 32 | 8 | 22/26 | 20/26 | 18/63 | 16 | 225 | 160/250 | 264/280 | |
| 40 | 8 | 22/44 | 20/44 | 18/89 | 15/98 | 23 | 244 | 164/259 | 269/289 |
| 50 | 8 | 22/51 | 20/70 | 18/70 | 15/106 | 37 | 259 | 172/276 | 282/306 |
| 65 | 8 | 30/35 | 26/44 | 22/55 | 15/138 | 55 | 270 | 215/294 | 300/322 |
| 80 | 8 | 36/26 | 34/33 | 28/41 | 19/68 | 81 | 284 | 240/338 | 344/366 |
| 100 | 6 | 45/60 | 40/75 | 35/93 | 25/54 | 121 | 304 | 235/317 | 323/345 |
| 125 | 5 | 42/47 | 38/59 | 34/74 | 29/117 | 180 | 334 | 282/314 | 316/342 |
| 150 | 8 | 71/43 | 64/51 | 54/59 | 50/56 | 257 | 364 | 356/399 | 402/427 |
| 200 | 6 | 65/44 | 59/52 | 53/58 | 48/78 | 479 | 442 | 340/402 | 402/426 |
| 250 | 4 | 65/34 | 59/42 | 52/45 | 47/55 | 769 | 507 | 315/379 | 415/379 |
| 6 | 97/21 | 87/35 | 79/39 | 71/47 | 393/459 | 493/399 | |||
| 300 | 4 | 65/55 | 59/59 | 52/65 | 47/55 | 1105 | 562 | 366/427 | 466/467 |
| 6 | 97/35 | 87/37 | 79/41 | 71/457 | 464/525 | 564/565 | |||
| 350 | 4 | 65/62 | 59/67 | 52/74 | 47/81 | 1307 | 622 | 397/452 | 497/492 |
| 6 | 97/41 | 87/44 | 79/48 | 71/47 | 509/564 | 609/604 | |||
| 400 | 6 | 65/58 | 59/62 | 52/68 | 47/75 | 1611 | 340 | 412/478 | 512/518 |
| 8 | 97/39 | 87/43 | 79/47 | 71/52 | 420 | 522/588 | 622/628 | ||
| 450 | 6 | 97/35 | 87/37 | 79/41 | 71/45 | 1972 | 340 | 403/498 | 503/523 |
| 8 | 145/22 | 131/23 | 118/35 | 108/28 | 450 | 503/658 | 603/648 | ||
| 500 | 6 | 97/64 | 87/68 | 79/75 | 71/82 | 2445 | 340 | 431/523 | 531/554 |
| 8 | 145/37 | 131/39 | 118/43 | 106/48 | 450 | 531/665 | 631/742 | ||
| 600 | 6 | 97/80 | 87/85 | 79/94 | 71/103 | 3534 | 380 | 478/548 | 578/588 |
| 8 | 145/45 | 131/49 | 118/53 | 106/60 | 500 | 658/679 | 758/781 | ||
| 700 | 4 | 97/72 | 87/77 | 79/85 | 71/95 | 4717 | 1110 | 490 | 590 |
| 6 | 145/45 | 131/49 | 118/53 | 106/60 | 690 | 790 | |||
| 800 | 4 | 108/95 | 102/102 | 94/112 | 82/123 | 5822 | 1265 | 502 | 602 |
| 6 | 164/72 | 156/77 | 144/85 | 125/93 | 610 | 710 | |||
| 900 | 4 | 108/90 | 102/97 | 94/107 | 82/117 | 7620 | 1186 | 698 | |
| 6 | 164/65 | 156/69 | 144/76 | 125/84 | 850 | ||||
| 1000 | 4 | 108/98 | 102/105 | 94/116 | 82/117 | 9043 | 1286 | 692 | |
| 6 | 164/65 | 156/71 | 144/81 | 125/84 | 855 | ||||
