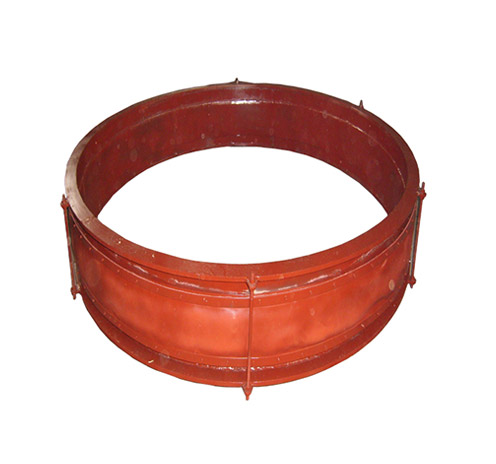

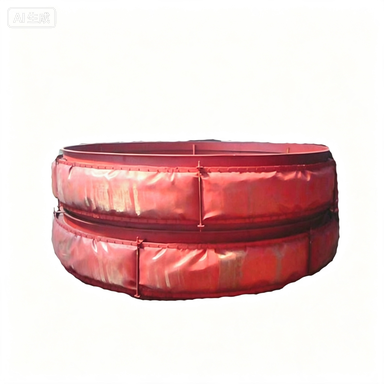

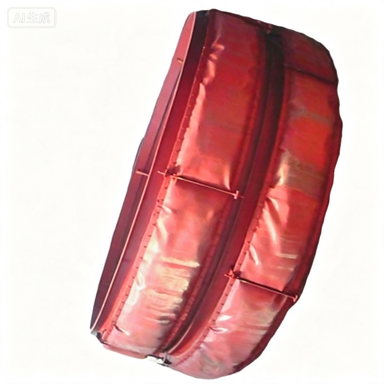

Circular Fabric Compensator

Brief Introduction:

Mainly used in all kinds of fan, air duct, the flexible connection between its function is to shock absorption, noise reduction, displacement and sealing, medium resistance, easy installation, is a kind of very ideal environmental protection field shock absorption, noise reduction, smoke prevention and dust control accessories.

Share:

Circular Fabric Compensator

Mainly used in all kinds of fan, air duct, the flexible connection between its function is to shock absorption, noise reduction, displacement and sealing, medium resistance, easy installation, is a kind of very ideal environmental protection field shock absorption, noise reduction, smoke prevention and dust control accessories.

Features

1. Rubber/fiber Smoke and air duct compensator devices have good displacement reducing repeatedly, can provide large multidimensional direction in smaller size compensation, can eliminate the multidirectional errors caused by all kinds of piping connection.

2. Rubber/fiber Smoke and air duct compensator apparatus has excellent sound absorption, isolation function, can effectively reduce and eliminate boiler, fan and so on sound and vibration of transmission system.

3. Rubber/fiber Smoke and air duct compensator is unable to transfer loss, reduced the design process, without adding other auxiliary facilities. 4, Rubber/fiber Smoke and air duct compensator and insulation material with high heat resistance and corrosion resistance, never rust, reduce maintenance costs. 5, Rubber/fiber Smoke and air duct compensator apparatus has excellent air tightness and flexibility, can guarantee the transmission medium leakproof and displacement after repeatedly restorable.

Parameter

specification of round product DW D1 D2 D3 b n d
mm
Φ108 108 200 164 110 10 4 10
Φ159 159 251 215 161   8 10
Φ219 219 311 275 211   10
Φ273 273 365 330 275   12 10
Φ325 325 427 385 327   10
Φ377 377 479 435 379   12
Φ426 426 528 490 428   12
Φ480 480 595 540 483 12 12
Φ530 530 645 600 533   12
Φ630 630 745 700 633   16 12
Φ720 720 843 800 723   12
Φ820 820 943 900 823   20 14
Φ920 920 1043 1000 923     14
Φ1020 1020 1153 1100 1023 14   14
Φ1120 1120 1253 1200 1123   14
Φ1220 1220 1353 1300 1223   14
Φ1320 1320 1453 1400 1323 24 14
Φ1420 1420 1553 1500 1423 16 28 14
Φ1820 1820 1963 1910 1823 16
Φ2020 2020 2363 2310 2223 32 16
Φ2220 2220 2363 2310 2223 18 36 16
Φ2420 2420 2563 2510 2423 40 16
Φ2820 2820 2983 2915 2823 20 44 18
Φ3220 3220 3883 3315 3223 22 52 18
Φ3620 3620 3783 3715 3623 56 18
